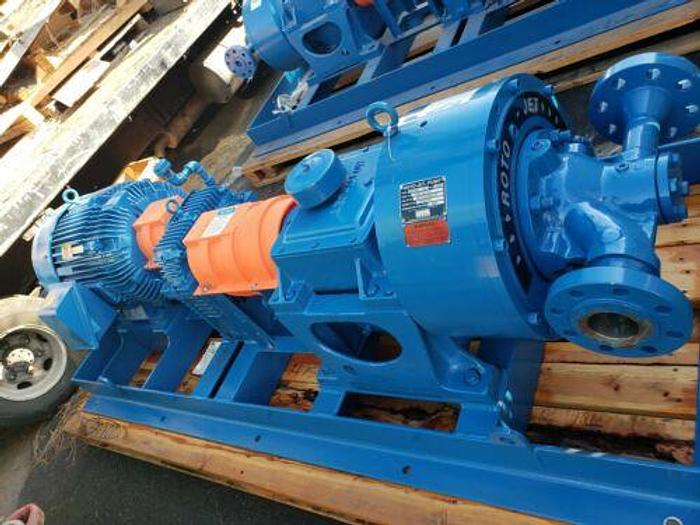

Unused Weir Specialty Pumps 100 HP Roto-Jet 3x2 ROHA III Pump Size S266
Long Beach, CA
TNT INDUSTRIAL ORANGE CALIF MDNA MEMBER
High Pressure Pitot Tube Pumps.
A single stage pump with only two basic working parts; (1) a rotating case and (2) a stationary pitot tube. The pump has only one wearing, rubbing part and that is a mechanical seal that sees only suction pressure. Seal leakage due to seal failure vents to atmosphere. Mechanical Seal is isolated from the bearing pedestal, minimizing the risk of seal leakage from contaminating the bearings. With minor seal leakage, the Roto-Jet pump can be kept in service with a damaged seal to meet the critical demands of daily production.
Capacity: up to 170 m3/hr Heads: up to 1585m Temperatures: up to 288O C Maximum Speed: 6321 RPM
|Manufacturer||Weir Specialty Pumps|
