IMPECCABLE GLEASON MODEL 887 CNC CURVIC COUPLING GRINDER W/ FANUC18MB REBUILT

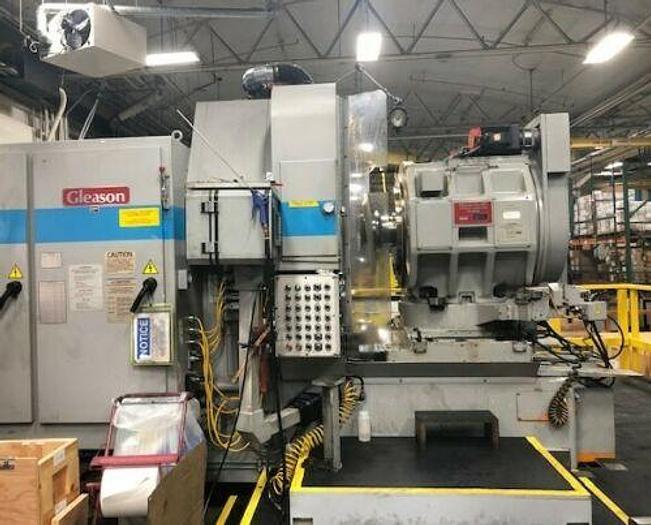

GLEASON Model 887 CNC CURVIC COUPLING GRINDER

 CONTROL: FANUC 18MB

"SUPER NICE CONDITION - AEROSPACE FACILITY"

Rebuilt: By GLEASON March 2000

MAX.DEPTH .375"

MAX DIA. 60"

MAX. DIA. COUPLING 36"

INDEX RANGE 20 TO 200

SLIDE WITHDRAW 10"

CENTER DIA.SPINDLE 23"

DEPTH OF CENTER DIA. 2.875"

DIA. CLEARANCE SPINDLE 22.5"

GRINDING WHEEL DIA. 6" TO 14" / 15" TO 21"

C/L SPINDLE FACE 3.75" TO 21"

FEED MOTOR ½ HP 1800 RPM

WHEEL MOTOR 15 HP 1800 RPM

HYDRAULIC MOTOR 3 HP 1800 RPM

INDEX MOTOR 400 IN/LBS 600 RPM

FLOOR SPACE 172" x 150"

APPROX. WEIGHT 34,000 LBS
